Results and plotting

All data within an Equilibrium are within 3 dictionaries: aqsc.Equilibrium.unknown, aqsc.Equilibrium.constant and aqsc.Equilibrium.axis_info. See Equilibrium API for their contents. In addition, the equilibrium's helicity can be obtained using aqsc.Equilibrium.get_helicity().

import aqsc
import numpy as np

equilibrium_circ = aqsc.circular_axis()
print(equilibrium_circ.unknown.keys())
print(equilibrium_circ.constant.keys())
print(equilibrium_circ.axis_info.keys())
print('Helicity is', equilibrium_circ.get_helicity())
# Continued below

All constituents of aqsc.Equilibrium.unknown and aqsc.Equilibrium.constant are ChiPhiEpsFunc's and ChiPhiFunc's. To evaluate them at a given flux coordinate, use eval.

# Continuing above
import matplotlib.pyplot as plt
psi = 0.05
chi = np.linspace(0, 2*np.pi, 500)
phi = np.linspace(0, 2*np.pi, 500)
# B_theta on a flux surface
B_theta_on_surface = \
    equilibrium_circ.unknown['B_theta_coef_cp'].eval(psi,chi[:,None], phi[None, :])
# Make colormap
plt.pcolor(chi, phi, np.real(B_theta_on_surface))
plt.xlabel('$\chi$')
plt.ylabel('$\phi$')
plt.colorbar(label=r'$B_\theta$')
plt.show()
# Continued below

$B_\theta colormap$

To transform the flux coordinate of an Equilibrium into Frenet, cylindrical or xyz coordinates, use aqsc.Equilibrium.flux_to_frenet

# Continuing above
# Plots some flux surfaces
phi = jnp.linspace(0, np.pi*2, 100)
for psi_i in jnp.linspace(0, 0.1, 10):
    R, _, Z = equilibrium_circ.flux_to_cylindrical(psi_i, phi, 0.6)
    plt.plot(R,Z)
plt.xlabel('R')
plt.ylabel('Z')
plt.show()
# Continued below

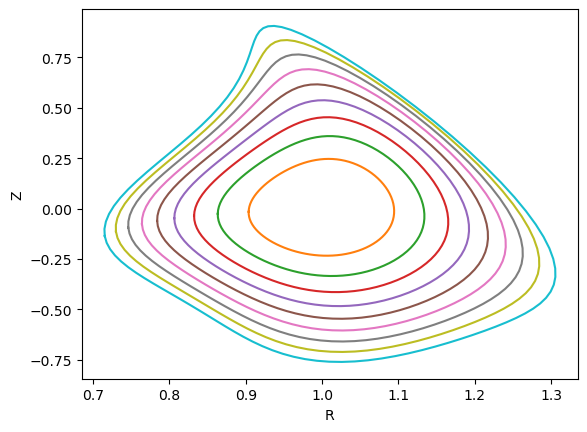

Flux surfaces

An order of an Equilibrium can be plotted with aqsc.Equilibrium.display_order(n). See Equilibrium API for its usage.

A ChiPhiFunc can be plotted with aqsc.ChiPhiFunc.display() and aqsc.ChiPhiFunc.display_content(). See ChiPhiFunc API for their usage.

Two ChiPhiFunc's can be compared with aqsc.compare_chiphifunc(). See utility API for its usage.
